Creating Mod Packages (Plugins)

info

This section covers creating packages recognized by the game natively (plugin mod packages), replacing or adding new content to the game.

Prerequisites

• Unreal Engine 4.27
• Mod Tools and MkRelease - tools created by AffrayCo, Mod Tools not required if not utilizing the SDK
• Project Launcher Profile

Creating the Mod Plugin

To create a plugin for modding in Unreal Engine 4.27:

1. Open Unreal Engine 4.27, then go to Edit > Plugins.
2. Click New Plugin to open the Plugin Creator.
3. Select Content Only.
4. Enter a Plugin Name, and fill out the Author and (optionally) Description fields.
5. Once the plugin has been created, place all your mod content inside the plugin’s folder.
6. In the Content Browser, right-click and select Miscellaneous > Data Asset, then search for PrimaryAssetLabel.

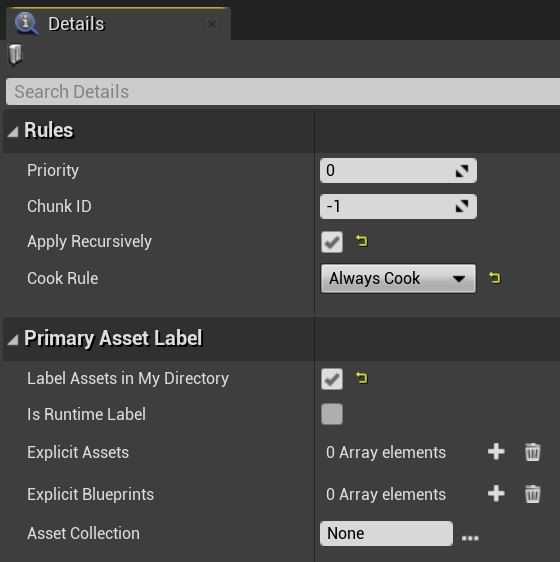

Fill out the Data Asset as shown below:

Creating a MkRelease Script

1. Download the MkRelease batch script.
2. Open PowerShell by right-click inside the File Explorer and selecting Open in Terminal.
3. Run the following command:

& "C:\Your Project Name\MkRelease.bat" "C:\Program Files\Epic Games\UE_4.27" "Your Game Install Directory\5K" "Current Game Version"

• Your Project Name — The name of your Unreal Engine project (where your .uproject file is located).
• Your Game Install Directory — The installation directory of the game (where Pandemic.exe is located).
• Current Game Version — The version of the game your mod targets, e.g. 0.17.1.

If successful, a few new folders and files should be created in your project folder:

Releases > 0.17.1 > WindowsNoEditor > AssetRegistry.bin & Metadata > DevelopmentAssetRegistry.bin

Packaging the Mod Plugin

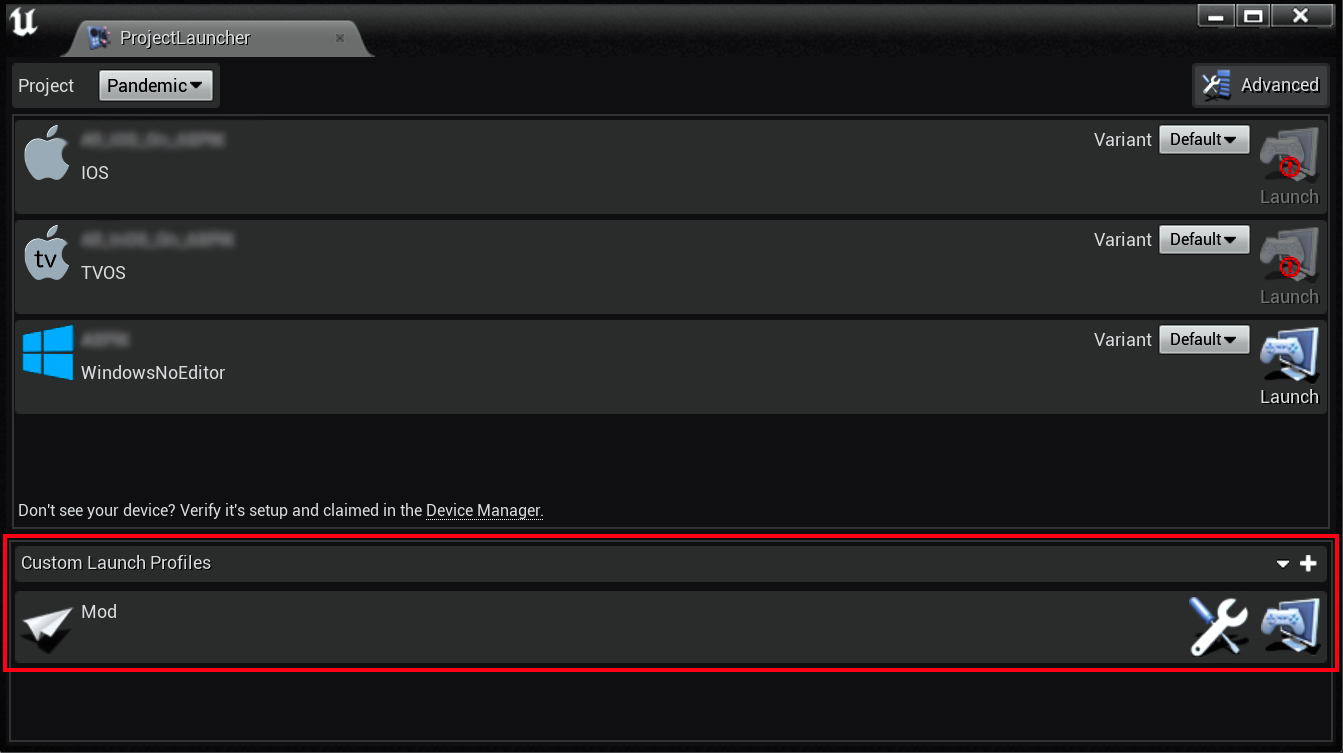

After creating your plugin and placing your mod content, navigate to Window > Project Launcher

1. Install the Project Launcher Profile. This file should be placed in your Engine install directory under UE_4.27\Engine\Programs\UnrealFrontend\Profiles
2. A new profile called Mod should now appear in the Project Launcher.
3. Click the Wrench icon to edit the profile, then under Package, set your desired Output Folder.
4. In the Cook section, update the Release version fields under both Advanced Settings and Release / DLC / Patching Settings.
5. Change Name of the DLC to build to match your Mod Plugin name. This is important!
6. After packaging, your mod files will be located in the output folder, next install your mod!
